Tungsten Heavy Alloy / Wolfram Heavy Metal Products

Symbol: W + Ni/Fe, W + Ni/Cu
Technology: Max powder --> pressing --> sintering --> tooling

Tungsten heavy alloy (Wolfram) have excellent radiation resistance, electric and thermal conductivities ( 0.2--0.3CGS ) and corrosion  resistance with high density ( 16.4 --18.5 g/cm3 ) and good mechanical strength. It has small coefficient of expansion and large elastic modulus. Tungsten products are extensively used in military equipment, nuclear, mechanical manufacturing, aircraft components, medical shields and sports equipment.

We supply tungsten alloy products such as W-Ni-Fe and W-Ni-Cu. The products are vary in shape from rod,  ball,  ring block strip to abnormal pieces according to the user's request (see table 3) . All of our tungsten alloy products are up to the grade of AMS-T-21014 (see table 1,2).  We can provide other types and sizes tungsten alloy products with varying contents and  properties.


Table 1.  Properties of tungsten alloy ( AMS-T-21014 )

Class

Nominal tungsten (weight percent)

Density   (g/cc)

Hardness ( HRC )(maximum)

1

90

16.85 - 17.25

32

2

92.5

17.15 – 17.85

33

3

95

17.75 – 18.35

34

4

97

18.25 – 18.85

35



  Table 2.  Mechanical Properties – Minimum Value ( AMS-T-21014 )

Class

Ultimate tensile strength ( ksi)

Yield strength at 0.2 percent offset  (ksi)

Elongation( percent )

1

110

75

5

2

110

75

5

3

105

75

3

4

100

75

2

Main products

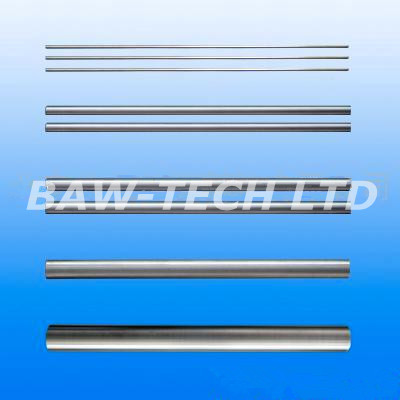

Tungsten Alloy Rods

Tungsten Alloy

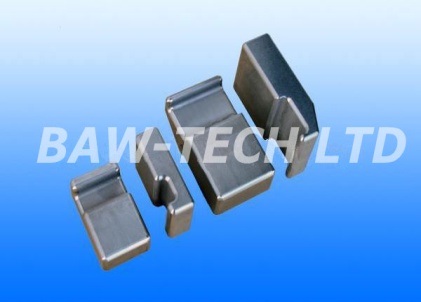

Plates Bucking bar

Radiation container

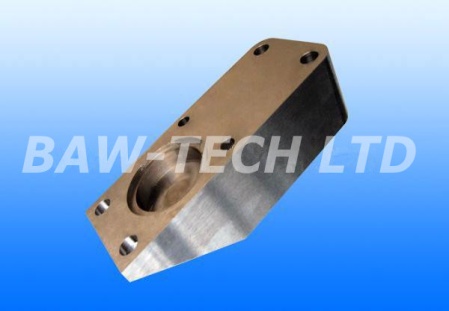

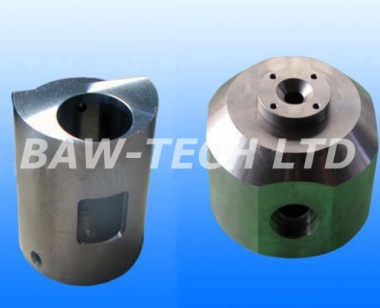

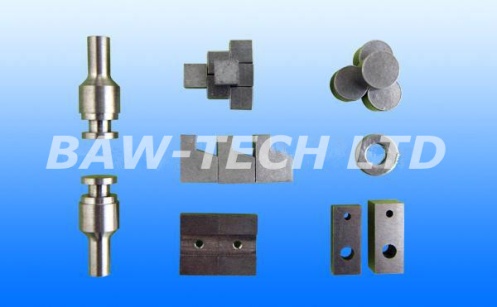

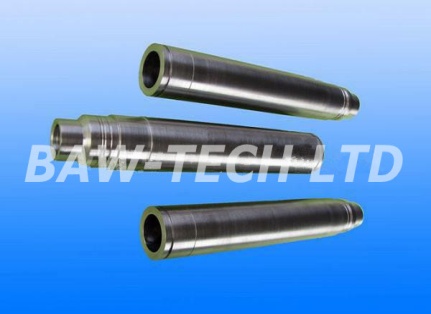

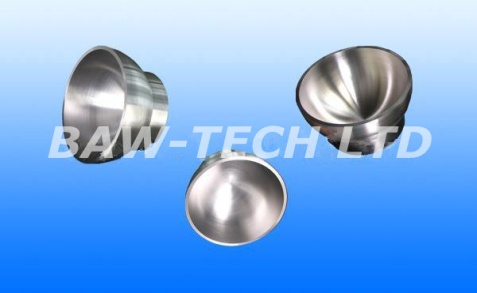

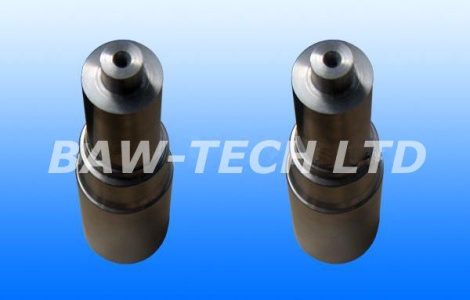

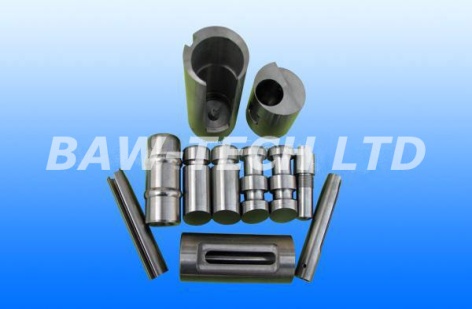

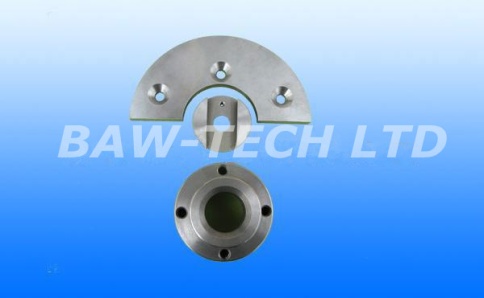

Special Shape Parts

Special Shape Parts

Special Shape Parts

Special Shape Parts

Special Shape Parts

hSpecial Shape Parts

Special Shape Parts

Special Shape Parts
